Cool Idea! Motor Upgrades Help Cut HVAC Energy Costs at Emory University

Hundreds of Thousands Saved Annually in Chiller Operations

pdf Download in PDF format [553 Kb]

Emory University, located in Atlanta, is a recognized center for biomedical research and home to some 11,000 students. Keeping its students and laboratories cool requires more than 25,000 tons of air conditioning with an energy bill of $2.5 million per year. Use of premium-efficiency motors in HVAC equipment helps keep energy costs down.

Electric motors account for about 60% of the power used in U.S. industrial buildings. The figure is closer to 50% in commercial structures and somewhat lower still in homes, where lighting and other loads dominate consumption. But what about schools and universities? Are motors the heavy power hogs in academia?

They certainly are at Emory University, the prestigious 166-year old Atlanta institution (Top Image). Emory is now home to some 11,000 students and 2,500 faculty members, plus researchers and support staff engaged in fields ranging from theology and molecular biology to law and international studies. Their interests and goals may be diverse, but they share at least one common need: to work, study and live in comfort.

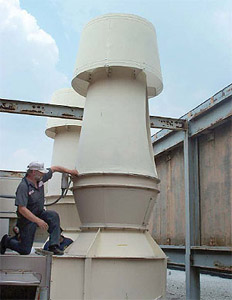

Figure 1. Two large exhaust fans on one of Emory University's research buildings. Emory design guidelines call for high-efficiency motors for its many chillers, air handlers, pumps and related equipment, which together account for more than 25% of the university's energy bill.

Atlanta's average temperatures remain at or above 79F (26C) between May and September, and to keep its students and faculty cool, Emory operates a large heating, ventilating air-conditioning and refrigeration (HVACr) system. Emory's centralized chiller plants make up a total of more than 27,000 tons of air-conditioning capacity, and there also are many stand-alone chillers plus more than 400 air handlers on campus (Figure 1). An HVACr system of that size demands a lot of electrical energy.

Just ask L.D. Kicak, RIAQM, manager of HVACr operations/ refrigerant compliance manager in the University's Facilities Management Division. Our centrifugal chillers alone account for about $2.5 million of Emory's annual energy costs, he says, or more than 25% of our total power bill. The motors that drive our chillers and air handlers make up the largest electrical loads on campus. In total, Emory operates thousands of motors, although many of them are smaller than 5 hp. It's the large chiller motors we're mainly concerned with.

Kicak's responsibility is making sure that Emory's HVACr department operates reliably and efficiently, but he also has to keep the University's energy bill within budget and see to it that the department spends wisely on HVACr equipment. Those responsibilities, plus compliance with the University's high environmental standards, focus his attention on efficiency. Because our chillers use so much power, he says, we want to make certain they operate as efficiently as they were designed to be. When we purchase a new chiller, we always want to know which is the most efficient chiller for the application. The chiller may cost us more initially, but we're interested in payback, reliability and maintenance issues.

Motors are the key to high efficiency, he emphasizes. Our OEM suppliers know we understand that, so we haven't had to demand high-efficiency motors in new equipment because they're already there. Reliability is also very important. We have a lot of various types of research being conducted here at the University, and we have to maintain exacting conditions set by the researchers and the equipment that supports them. Premium-efficiency motors play a key role in reliability. We maintain our systems to make sure they operate reliably and within design standards. We now employ a Demand Based Maintenance Program which routinely checks things like bearing lubrication, drive belt tension, heat exchanger tubes, water treatment chemicals and other items that affect our chillers and air handlers. All that maintenance helps keep both reliability and efficiency high, but high-efficiency motors are only one of the keys to our electrical energy efficiency.

Back to Top

Looking at the Big Picture

When Kicak joined Emory, keeping chillers operating efficiently was a less-than-exact science. No one had ever collected the necessary data or analyzed it, he recalls, even though it was there all the time. I found that we needed to look at the big picture and ask some questions we hadn't considered before: Is the equipment operating as it was designed? What factors should we be watching? What can we improve? Are we buying the right equipment and maintaining it as we should?

There had been a lot of Band-aiding back then, but very little real data collection and implementation, and equipment was repaired when it broke down. The system kept running, but Kicak knew the situation could be improved. Subsequently, Kicak presented his Demand Based Maintenance Program, which is based on much of the information contained in this case history, at the 26th World Energy Engineering Congress held in Atlanta.

We rebuilt our motors or replaced them in kind, based on age and condition, Kicak says. Upgrading to higher-efficiency models wasn't an issue. Now, we work with an experienced motor service center whose owner understands the connections among reliability, efficiency and cost. He's helped us upgrade our motors, and that has saved us money and kept our reliability high. We also have some new tools that make our job easier.

Back to Top

MotorMaster+, EPAct and NEMA Premium™

One of those tools is MotorMaster+, software developed by the U.S. Department of Energy (DOE). It helps users select efficient, cost-effective motors. It contains a large database of integral-horsepower motors sold in the USA, including motors that fall under the Energy Policy Act of 1992 (EPAct) and many older models that do not. Using a built-in spreadsheet, users can compare a motor's costs based on operating conditions, utility rates, demand charges and other factors. The software then compares the cost, in kWh and dollars, of buying a new, more efficient motor vs. rebuilding an existing one. The program even calculates the payback period for the new motor's cost premium, if any. MotorMaster+ software is available by request at AMO Tools Help Desk.1

MotorMaster's database also lists motors that meet or exceed NEMA Premium efficiency ratings. The ratings, published by the National Electrical Manufacturers Association, are nominally one to two percentage points higher than those stipulated under EPAct. Motors that meet NEMA Premium standards are among the most efficient units currently available. NEMA Premium standards extend to motors through 500 hp.2

Back to Top

Software Finds the Hot Spots

Mr. Kicak's second energy-saving tool is a sophisticated data-logging and analytical program called ChillerCheck. The software was developed by Larry Seigel, founder and president of Chillergy Systems LLC, an Atlanta-based application service provider. Emory beta-tested the software for Chillergy and now uses it full-time.

Figure 2. Two large exhaust fans on one of Emory University's research buildings. Emory design guidelines call for high-efficiency motors for its many chillers, air handlers, pumps and related equipment, which together account for more than 25% of the university's energy bill.
Seigel explains how the system works: ChillerCheck collects data from dozens of sensors on Emory's chillers. The data are then entered into a PDA by the technician who then hot-syncs the data to the Web site. We monitor water inlet and outlet temperatures and flow rates, refrigerant temperature and pressure, bearing performance and other factors, along with power consumption (volts and amperes for each phase on drive motors). The software calculates real-time efficiency for each chiller and compares it with guaranteed nameplate values. It then reports each unit's efficiency loss, if any, to the system operator at a central control station and to Kicak's office PC as well as his PDA (Figure 2).

When efficiency loss drops more than 5% from the nameplate rating that's the action limit we recommend the operator can switch chillers and dispatch a maintenance crew to the underperforming unit. The source of the efficiency loss and the way efficiency changes (abruptly or gradually, for example) tells an experienced operator more about the problem, be it a loose drive belt, fouled heat exchanger tubes, a malfunctioning valve or a failing motor.

ChillerCheck can also detect certain power problems, such as phase imbalance, that can lead to decreased efficiency (and sometimes damage) even in a high-efficiency motor. The objective is to miminize system-wide energy use. To date, Emory estimates they've realized chiller energy efficiency savings in excess of $300,000.

Back to Top

Improved Design Guide

Another energy-saving tool is an updated version of the university's Design Guide, the standard for electrical and mechanical work. The current design guide addresses certain energy conservation issues, like calling for the installation of high-efficiency motors wherever possible. It also contains such important power quality provisions as requiring all-copper wiring (Figure 3a), proper electrical grounding and lightning protection (Figure 3b).

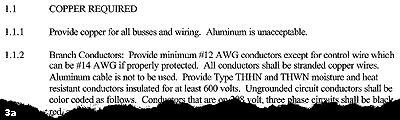

Figure 3a. Emory University's Design Guide spells out requirements for all electrical and mechanical work done on campus. The guide recognizes the value of copper and specifically forbids the use of aluminum (3a).

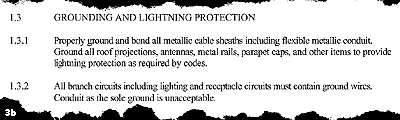

Figure 3b. It also mandates installation of a copper grounding conductor, irrespective of the conduit, which is a CDA recommended practice (3b). Although the guide currently calls for the installation of high-efficiency motors in most cases, it is being rewritten to specify premium-efficiency motors, since efficiency ratings of motors that bear the "NEMA Premium" designation are higher than those of EPAct-compliant high-efficiency motors by one or two percentage points. Numerous premium-efficiency motors have already been installed on the university's HVACr system.

Working with the university's energy engineer, Kicak is strengthening the guide to include, among other things, a standardized motor repair/replacement policy and higher efficiency requirements for motors. Kicak already replaces failed motors smaller than 25 hp with high-efficiency motors. Failed motors larger than 25 hp are also replaced with highefficiency models, although old motors in this size range are rewound and stored for use as emergency back-up units because, as Kicak points out, he can't afford to wait for a replacement when a chiller motor fails. The new Design Guide will formalize this policy.

A number of premium-efficiency motors are installed in Emory's HVACr system. One example is a 40-hp NEMA Premium pump motor installed at one of the system's many cooling towers (Figure 4). This motor carries the NEMA Premium label, and its nameplate calls out the required NEMA nominal efficiency of 94.1% as well as a guaranteed minimum efficiency of 93.0%. The motor replaced a standard- efficiency model.

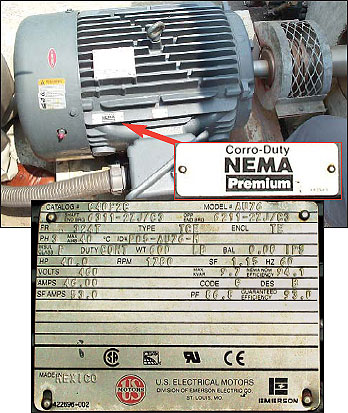

Figure 4. A 40-hp NEMA Premium-efficiency pump motor installed on a cooling tower at one of Emory University's centralized chillers. The motor bears the NEMA Premium label, signifying a nominal rated efficiency of 94.1%. Guaranteed efficiency is 93.0%.

Figure 5 shows another example. The three motors originally installed on a set of condenser water pumps were standard- efficiency models. One high-efficiency motor was installed as a replacement several years ago (Figure 5, center). More recently, a premium-efficiency motor was installed when another one of the original units failed. The motors' nameplates and labels are informative.

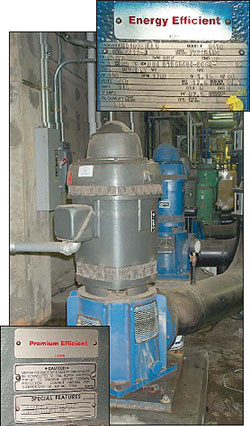

Figure 5. Three 100-hp cooling water pump motors serving an Emory University cooling system illustrate various commercial definitions for energy efficiency. The motor in the foreground has a nominal rated efficiency of 95.0% and carries a "Premium Efficient" label. 100-hp motors that qualify for the NEMA Premium rating have a nominal energy efficiency rating of 95.4%. Neither EPAct nor NEMA Premium requirements apply to vertical, inverter-duty motors such as the one pictured here. The blue motor (center) carries an "Energy Efficient" label and is rated at 94.1%. The average efficiency of older, standard-efficiency motors such as the green unit shown at the rear of the photo is 92.3%. To ensure a true "premium efficiency" motor, look for a NEMA Premium label, or compare the nameplate efficiency data to the NEMA Premium requirements.
