Grounding with Copper:Tinning vs. Non-tinning

Download PDF [317 Kb]


Copper and copper alloys are widely used because they combine unique properties at an economical price. These include high thermal and electrical conductivity, ease of manufacture, high recyclability and good corrosion resistance. Copper, a noble metal that occurs naturally in its elemental form, is almost totally impervious to corrosion from soils found worldwide. But it would be misleading to infer that copper will not corrode.


Galvanic corrosion is an electrochemical process whereby one metal corrodes preferentially to another whenever both metals are put in electrical contact and immersed in an electrolyte. What is surprising to some is that soil or air can be an electrolyte.


Copper is the preferred metal for grounding conductors and electrodes. This is not only due to its high degree of connectivity, but also its corrosion resistance. In most soils, copper electrodes outlast alternates such as galvanized steel. However, there are certain conditions where tinning (coating with tin) the copper would be useful.

The designer of a grounding system typically performs a soils analysis before designing the grounding system. Soil aggressiveness and chemical composition will determine the appropriate steps to take.

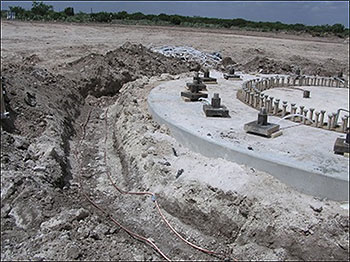

copper conductors Figure 1. Bare 4/0 AWG parallel copper conductors are prepared for direct burial to form two ring grounds around this wind-powered generator base. Soil analysis indicated that bare copper was entirely appropriate at this site for direct burial with no corrosion concerns.

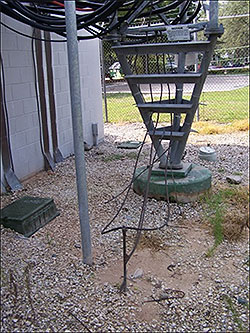

copper grounding conductors Figure 2. Above-ground use of 4/0 AWG bare copper grounding conductors for coax braids at a communications facility. In this case, runoff considerations and corrosion were not issues and bare copper is perfectly suitable. Note the rich, brown color of the copper down-straps at left after approximately 10 years in service.
Stainless steel ground rods Figure 3. Copper and galvanized steel are more susceptible to corrosion where the pH of the soil exceeds 8. Soil analysis at this site (a dairy pasture) indicated a large concentration of organic acids. Stainless steel ground rods were indicated, along with tinned 250 kcmil copper conductors. They were connected with a bronze fitting listed for that purpose, and coated with zinc-rich protective paint.

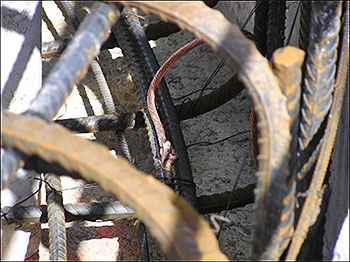

Bare copper attached to rebar Figure 4. Bare copper can be directly attached to rebar for concrete encasement. Note that exothermic welding was utilized for this purpose. The concrete that will surround the rebar will act as a buffer, helping to prevent galvanic action from the soil. (“Steel rebar embedded in concrete has approximately the same potential as copper, thus will not corrode” – IEEE Std. 142-1991)

When the chemical composition of the soil is unknown (in the absence of soil testing), it is the user’s choice to stipulate tinning or bare. In most cases, bare copper is sufficient, although we recommend exceeding the rather minimal gauge requirements of the NEC. 4/0 AWG or larger is commonly found in industrial environments.

When soils are highly acidic, or alkaline, or suspected of being so, backfill material such as bentonite can greatly extend the life of bare copper. Further, bentonite retains water, thus can greatly increase contact area with the soil, thus reducing grounding resistance. Carbon-based backfills often contain other contaminants, such as sulfur and other elements which are harmful to copper and should be avoided.

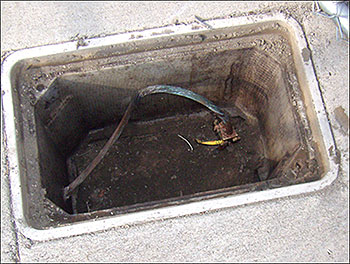

copper oxide runoff Figure 5. In this instance, copper oxide runoff during rain events is of no consequence. The copper oxide that will develop serves to protect the underlying copper.

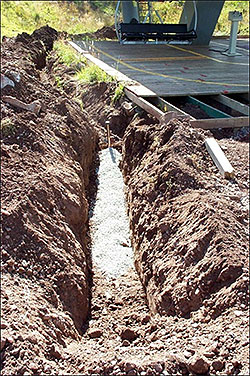

Filled trench Figure 6. A chemical-filled electrode surrounded by bentonite backfill (the white slurry) to improve electrical connectivity to the earth.

Above-ground Outdoor Construction

copper conductor

Figure 7. Tinned 4/0 copper conductor attached to a galvanized steel flange of a support column. Note the high pressure compression fitting and protective paint.

Outdoor air can act as an electrolyte because it contains a variety of components which can cause corrosion of any metal. Varying moisture levels, salt and other contaminants are just a few. In overhead, outdoor construction, copper runoff can cause staining of pavement materials. It’s one reason why older overhead telephone wiring (before plastic coverings) was usually tinned. In addition, copper runoff can be very corrosive to galvanized steel support structures, even when not in direct contact. In such cases, tinning of the conductors is recommended to prevent such conditions.

“Precipitation run-off from copper and copper alloys can attack galvanized parts (BS 6651:1999 and IEC 61024-1-2, section 5.2); therefore, bare copper conductors or copper bus bars shall not be installed above galvanized steel, such as a tower, unless the steel is protected against the precipitation run-off “ (IEC 61024-1-2, section 5.2, quoted in Motorola R56.)

Lastly, for connection to the main grounding bus, or any connection point, consider connectability. In a recent research project conducted by Powertech Labs, copper connections in mechanical connectors passed thermal cycling tests under IEC 61238-1, while the overwhelming majority of aluminum connections largely did not pass, irrespective of preparation. See Building Wire for more information on this study.

Further Reading

The general information in this document is a limited look at the complex subject of corrosion, and further investigation is encouraged. The following sources contain additional information on grounding and corrosion.
